CAD RCC reinforcement details 2d view structural blocks dwg file

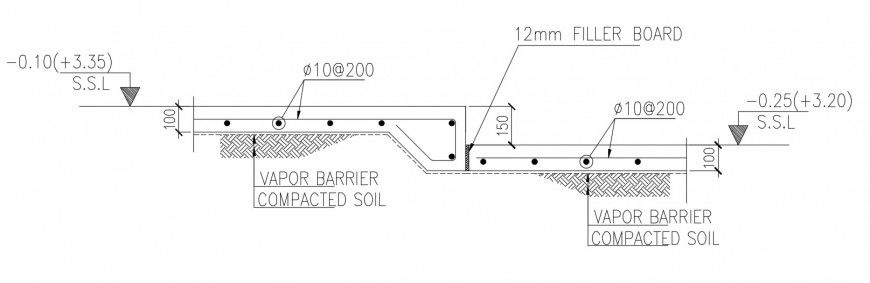

CAD RCC reinforcement details 2d view structural blocks dwg file that shows reinforcement details in tension and compression zone along with main and distribution hook up and bent up bars details. Stirrups are provided to hold up bars in position and effective clear cover details also included in drawings.
